Authentication Section

Info

This is a new section introduced in LTS 24.10 which replaces the previous Delegated Authentication options found within the Synapse section. Your previous configuration will be upgraded on first-run of the newer LTS.

In the Authentication section you will find options to configure settings specific to Authentication. Regardless of if you are using the Matrix Authentication Server, or have enabled Legacy Auth, the settings on this page will remain the same.

However please note, MAS does not support delegated authentication with SAML or GroupSync - if you wish to enable either of these you will need to return to the Host section and enable Legacy Auth.

All settings configured via the UI in this section will be saved to your deployment.yml, with the contents of secrets being saved to secrets.yml. You will find specific configuration examples in each section.

Config Example
deployment.yml
metadata:
annotations:
  ui.element.io/layer: |
    components:
      synapse:
spec:
  components:
    synapse:
      config:
        delegatedAuth:
secrets.yml
kind: Secret
metadata:
  name: synapse
  namespace: element-onprem
data:

By default, if you do not change any settings on this page, defaults will be added to your configuration file/s (see example below).

Config Example
deployment.yml
metadata:
  annotations:
    ui.element.io/layer: |
      components:
spec:
  synapse:
    config:
      delegatedAuth:
        localPasswordDatabase:
          enableRegistration: false # (1)!
  1. Note, if you deploy without any authentication methods enabled, the installer will default to Local Accounts.
secrets.yml
apiVersion: v1
kind: Secret
metadata:
data:
  ldapBindPassword: examplePassword

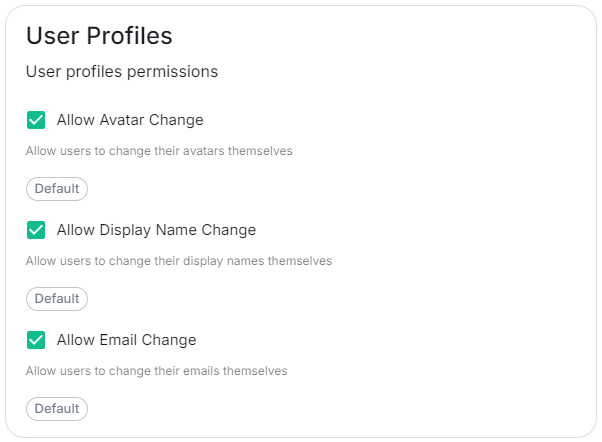

User Profiles


Config Example
spec:
  components:
    synapse:
      config:
        delegatedAuth:
          userProfiles:
            allowAvatarChange: true # (1)!
            allowDisplayNameChange: true # (1)!
            allowEmailChange: true # (1)!
  1. Not present if left as default

The User Profiles section provides some self-explanatory config options to adjust what changes users are allowed to make to their User Profile, such as changing their Display Name. You may wish to restrict this if you'd prefer to delegate the setting of these values to the associated Identity Provider.

OIDC

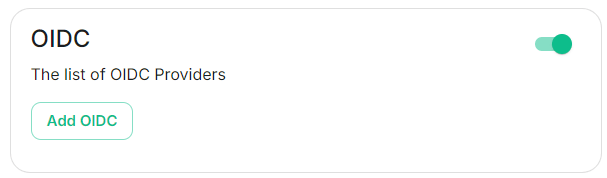

You can add and configure one, or multiple, OIDC providers - to do so you will need to click the Add OIDC / Add more OIDC button found after toggling on the OIDC section:


Once an OIDC provider is added, you can remove any providers by clicking the rubbish bin icon found to the left of the provider.

Config Example
spec:
  components:
    synapse:
      config:
        delegatedAuth:
          oidc:
            -

IdP Name


Config Example
spec:
  components:
    synapse:
      config:
        delegatedAuth:
          oidc:
            idpName: example_name # (1)!
  1. Required

IdP ID


Config Example
spec:
  components:
    synapse:
      config:
        delegatedAuth:
          oidc:
            idpId: 01JDS2WKNYTQS21GFAKM9AKD9R # (1)!
  1. Required

IdP Brand


Config Example
spec:
  components:
    synapse:
      config:
        delegatedAuth:
          oidc:
            idpBrand: example_brand

Issuer


Config Example
spec:
  components:
    synapse:
      config:
        delegatedAuth:
          oidc:
            issuer: https://issuer.example.com/ # (1)!
  1. Required

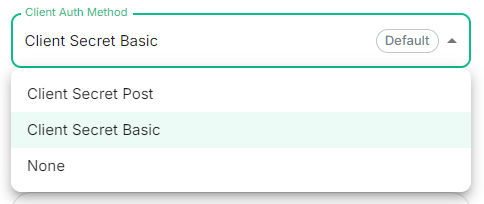

Client Auth Method


Config Example
spec:
  components:
    synapse:
      config:
        delegatedAuth:
          oidc:
            clientAuthMethod: client_secret_basic # (1)!

  1. If no clientAuthMethod defined, will default to client_secret_basic. Alternative options include:

    clientAuthMethod: client_secret_post

    clientAuthMethod: none

Client ID


Config Example
spec:
  components:
    synapse:
      config:
        delegatedAuth:
          oidc:
            clientId: example_client_id

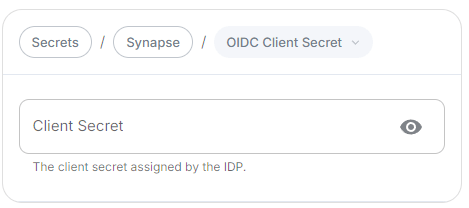

Client Secret


Config Example
deployment.yml
spec:
  components:
    synapse:
      config:
        delegatedAuth:
          oidc:
            clientSecretSecretKey: oidcClientSecret
secrets.yml
apiVersion: v1
kind: Secret
metadata:
  name: synapse
  namespace: element-onprem
data:
  oidcClientSecret: U2VjdXJlT0lEQ0NsaWVudFNlY3JldA==

Allow Existing Users


Config Example
spec:
  components:
    synapse:
      config:
        delegatedAuth:
          oidc:

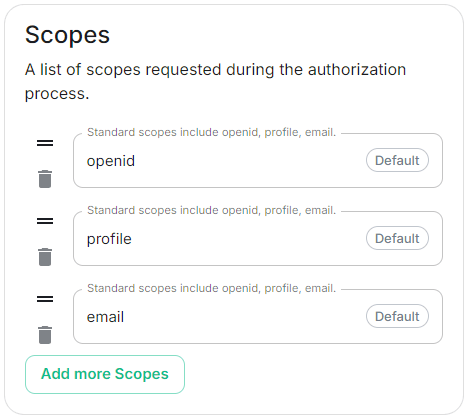

Scopes


Config Example
spec:
  components:
    synapse:
      config:
        delegatedAuth:
          oidc:
            scopes:
              - openid
              - profile
              - email

User Mapping Provider

Config Example
spec:
  components:
    synapse:
      config:
        delegatedAuth:
          oidc:
            userMappingProvider:

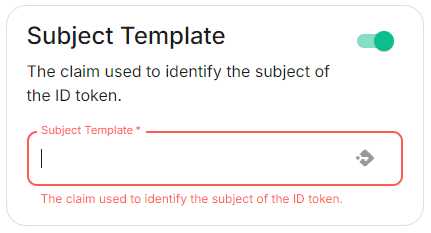

Subject Template


Config Example
spec:
  components:
    synapse:
      config:
        delegatedAuth:
          oidc:
            userMappingProvider:
              subjectTemplate: "{{ user.subject }}"

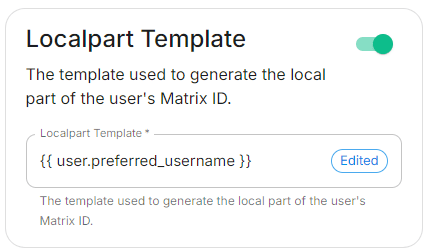

Localpart Template


Config Example
spec:
  components:
    synapse:
      config:
        delegatedAuth:
          oidc:
            userMappingProvider:
              localpartTemplate: "{{ user.preferred_username }}"

If using legacy auth, you should use Jinja python to format your template; if using MAS, you should use Jinja rust formatting instead. For example, to get the a valid localpart from an email, you would use {{ user.preferred_username.split('@')[0] }} if using Legacy Auth, or {{ (user.preferred_username | split('@'))[0] }} if using MAS.

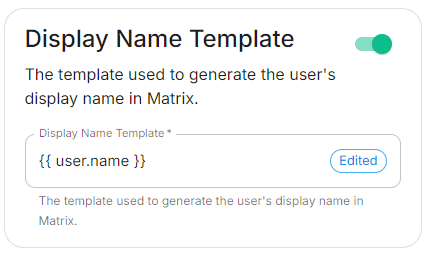

Display Name Template


Config Example
spec:
  components:
    synapse:
      config:
        delegatedAuth:
          oidc:
            userMappingProvider:
              displayNameTemplate: "{{ user.name }}"

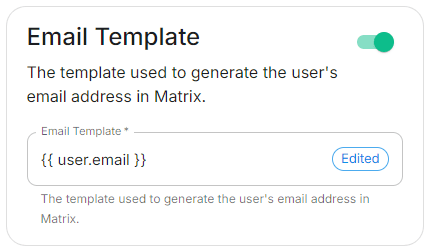

Email Template


Config Example
spec:
  components:
    synapse:
      config:
        delegatedAuth:
          oidc:
            userMappingProvider:
              emailTemplate: "{{ user.email }}"

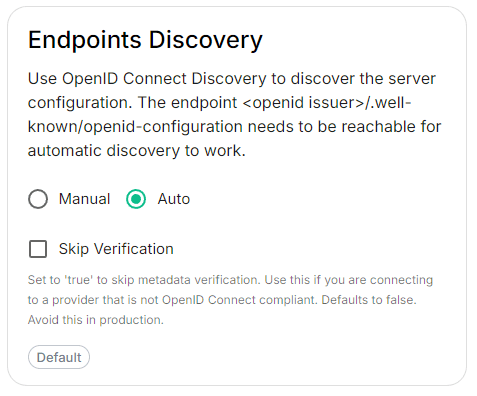

Endpoints Discovery

Auto Discovery


Config Example
spec:
  components:
    synapse:
      config:
        delegatedAuth:
          oidc:
            - clientId: synapsekieranml
              clientSecretSecretKey: oidcClientSecret
              endpointsDiscovery:
                skipVerification: false
              idpId: 01JDS2WKNYTQS21GFAKM9AKD9R
              idpName: Keycloak
              issuer: https://keycloak.ems-support.element.dev/realms/matrix
              scopes:
                - openid
                - profile
                - email
              userMappingProvider:
                displayNameTemplate: "{{ user.name }}"
                emailTemplate: "{{ user.email }}"
Skip Verification
Config Example
spec:
  components:
    synapse:
      config:
        delegatedAuth:
          oidc:
            - clientId: synapsekieranml
              clientSecretSecretKey: oidcClientSecret
              endpointsDiscovery:
                skipVerification: false
              idpId: 01JDS2WKNYTQS21GFAKM9AKD9R
              idpName: Keycloak
              issuer: https://keycloak.ems-support.element.dev/realms/matrix
              scopes:
                - openid
                - profile
                - email
              userMappingProvider:
                displayNameTemplate: "{{ user.name }}"
                emailTemplate: "{{ user.email }}"

Backchannel Logout Enabled

Warning

The Matrix Authentication Service does not support configuring Backchannel Logout. You can only configure Backchannel logout if you have enabled Legacy Auth from the Host Section.


Config Example
spec:
  components:
    synapse:
      config:
        delegatedAuth:
          oidc:
            - clientId: synapsekieranml
              clientSecretSecretKey: oidcClientSecret
              endpointsDiscovery:
                skipVerification: false
              idpId: 01JDS2WKNYTQS21GFAKM9AKD9R
              idpName: Keycloak
              issuer: https://keycloak.ems-support.element.dev/realms/matrix
              scopes:
                - openid
                - profile
                - email
              userMappingProvider:
                displayNameTemplate: "{{ user.name }}"
                emailTemplate: "{{ user.email }}"

SAML

Warning

The Matrix Authentication Service does not support SAML and it is recommended to switch to OIDC. You can only enable SAML authentication if you have enabled Legacy Auth from the Host Section.

LDAP

Local Accounts
