Database Section

This section of the ESS installer GUI will only be present if you are using the Kubernetes deployment option or you have opted to use your own PostgreSQL for a Standalone deployment.

If you have not yet set up your PostgreSQL, you should ensure you have done so before proceeding, see the relevant PostgreSQL section from the Requirements and Recommendations page:

All settings configured via the UI in this section will be saved to your deployment.yml, with the contents of secrets being saved to secrets.yml. You will find specific configuration examples in each section.

Config Example
deployment.yml
spec:
  components:
    synapse:
      config:
        postgresql:
secrets.yml
apiVersion: v1
kind: Secret
metadata:
  name: synapse
  namespace: element-onprem
data:
  postgresPassword:

By default, if you do not change any settings on this page, defaults will be added to your configuration file/s (see example below).

Config Example
spec:
  components:
    synapse:
      config:
        postgresql:
          database: synapse
          host: db.example.com
          passwordSecretKey: postgresPassword
          user: test-username

PostgreSQL

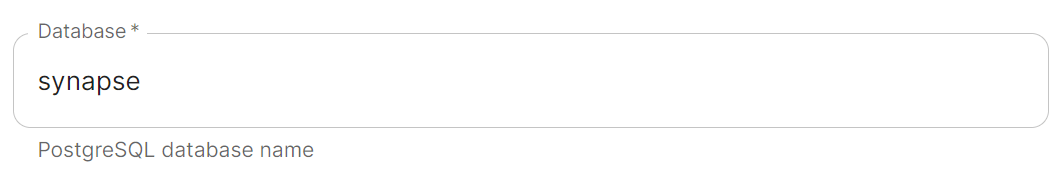

Database


Config Example
spec:
  components:
    synapse:
      config:
        postgresql:
          database: synapse

Enter the name of the PostgreSQL Database you configured per the previously mentioned Requirements and Recommendations to use for Synapse.

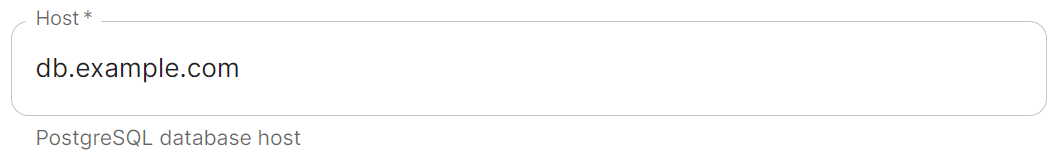

Host


Config Example
spec:
  components:
    synapse:
      config:
        postgresql:
          host: db.example.com

Enter the fully qualified domain name of the PostgreSQL Database you configured per the previously mentioned Requirements and Recommendations to use for Synapse.

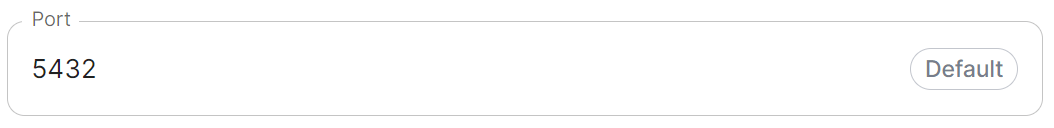

Port


Config Example
spec:
  components:
    synapse:
      config:
        postgresql:
          port: 5432 # (1)!
  1. Port not present when left as default 5432

Defaults to 5432, either keep if correct or provide the required port of the PostgreSQL Database you configured per the previously mentioned Requirements and Recommendations to use for Synapse.

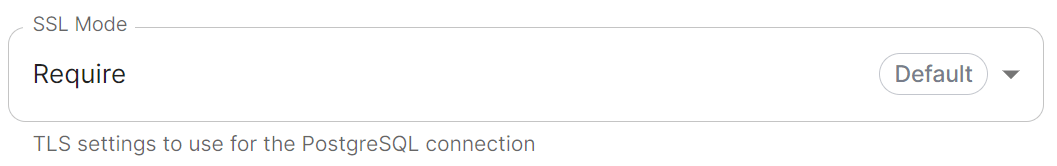

SSL Mode


Config Example
spec:
  components:
    synapse:
      config:
        postgresql:
          sslMode: require # (1)!

  1. sslMode not present when left as default require. Alternative configuration available:

    sslMode: disable

    sslMode: allow

    sslMode: prefer

    sslMode: verify-ca

    sslMode: verify-full

Defaults to Require - it is not recommended to disable SSL, so for most setups, this setting should be left as default.

You should adjust to accommodate your environment as required, the options available are:

  • Disable
  • Allow
  • Prefer
  • Require
  • Verify CA
  • Verify Full

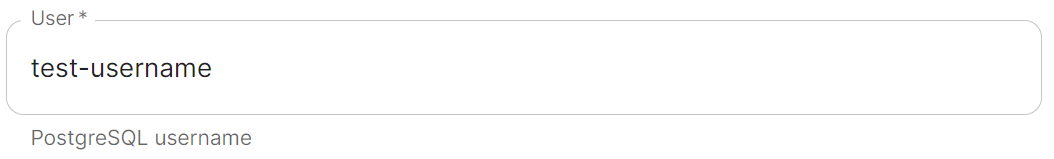

User


Config Example
spec:
  components:
    synapse:
      config:
        postgresql:
          user: test-username

Enter the username of a user who can access the PostgreSQL Database you configured per the previously mentioned Requirements and Recommendations to use for Synapse.

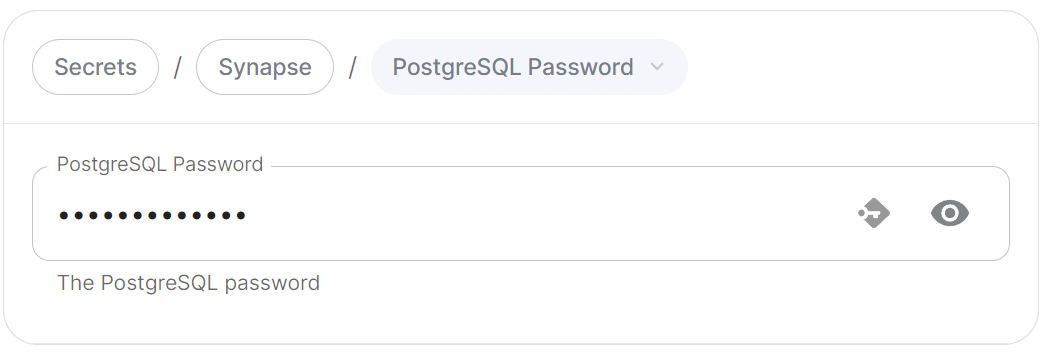

PostgreSQL Password


Config Example
secrets.yml
apiVersion: v1
kind: Secret
metadata:
  name: synapse
  namespace: element-onprem
data:
  postgresPassword: dGVzdC1wYXNzd29yZA==

Enter the password for the specified user who can access the PostgreSQL Database you configured per the previously mentioned Requirements and Recommendations to use for Synapse.

Advanced

Connection Pool

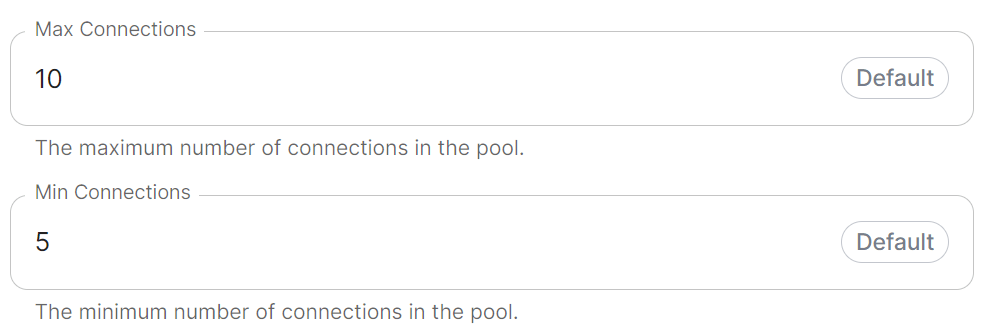

Max / Min Connections


Config Example
spec:
  components:
    synapse:
      config:
        postgresql:
          connectionPool: # (1)!
            maxConnections: 10
            minConnections: 5
  1. connectionPool not present when left as default

In most deployments you should not need to configure these settings, however if required, you can adjust both the minimum and maximum connections in the Synapse connection pool.
